The DC-ECM motor technology consumes less electricity, decreases cabinet vibration, and improves biosafety cabinet HEPA filter life, by almost 250%!
Longer Filter Life
NuAire uses the largest HEPA filters with the most pleats per square inch; the TouchLink airflow control system; internal exaust damper; and individually selected, optimially determined forward- curved fans for each model size/width.
Ergonomic Design

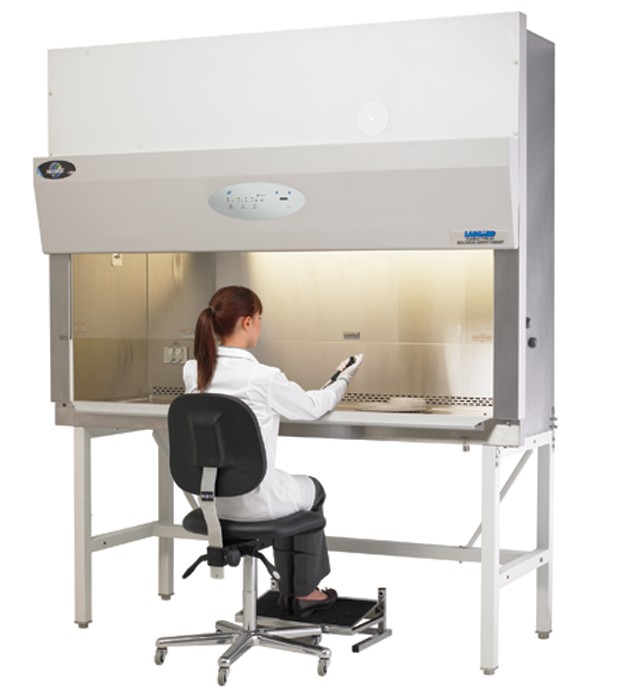

NuAire incorporates proper laboratory ergonomics into every product it manufactures. From proper posture to simple user comforts, your Labgard Biological Safety Cabinet will reduce fatigue, and virtually eliminate user error.
model
NU-437-300
NU-437-400
NU-437-500
NU-437-600
Nominal Size
3 ft. (0.9 m)
4 ft. (1.2 m)
5 ft. (1.5 m)
6 ft. (1.8 m)
Style of Cabinet
Bench top/console with optional base stand
Bench top/console with optional base stand
Bench top/console with optional base stand
Bench top/console with optional base stand
Sash Height
8" (203 mm)
10" (254 mm) / 8" (203 mm)
10" (254 mm) / 8" (203 mm)
10" (254 mm) / 8" (203 mm)
Exterior Dimensions (W x D x H) in. [mm]
41 ⅝ x 32 ⅞ x 63 (1057 x 835 x 1600)
53 ⅝ x 32 ⅞ x 63 (1362 x 835 x 1600)
65 ⅝ x 32 ⅞ x 63 (1667 x 835 x 1600)
77 ⅝ x 32 ⅞ x 63 (1972 x 835 x 1600)
Interior Dimensions (W x D x H) in. [mm]
34 ⅜ x 23 ½ x 28 ½ (873 x 597 x 724)
46 ⅜ x 23 ½ x 28 ½ (1178 x 597 x 724)
58 ⅜ x 23 ½ x 28 ½ (1483 x 597 x 724)
70 ⅜ x 23 ½ x 28 ½ (1788 x 597 x 724)
Weight
475 lbs. / 215 kg.
500 lbs. / 227 kg.
600 lbs. / 273 kg.
680 lbs. / 308 kg.
Inflow Velocity
105 fpm (.53 m/s)
105 fpm (.53 m/s)
105 fpm (.53 m/s)
105 fpm (.53 m/s)
Downflow Velocity
60 fpm (0.30 m/s)
60 fpm (0.30 m/s)
60 fpm (0.30 m/s)
60 fpm (0.30 m/s)
Heat Rejected, BTU, Per Hour (non-vented) (vented)
New Motor Technology
Ergonomic Design
