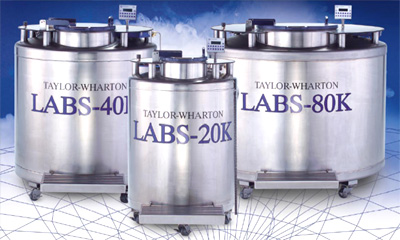

| Models |
20K |
40K |
80K |
| Dimensions |
External Operating Height (Top of Step to Lid Opening)
-in. / -mm. |
42.5 / 1080 |
42.5 / 1080 |
42.5 / 1080 |
| Step Height -in. / -mm. |
11.0 / 279 |
11.0 / 279 |
11.0 / 279 |
| Overall Height (Top of Control Interface) -in. / -mm. |
60.0 / 1524 |
60.0 / 1524 |
60.0 / 1524 |
| Usable Height Internal -in. / -mm. |
30.0 / 762 |
30.0 / 762 |
30.0 / 762 |
| Outside Diameter -in. / -mm. |
34.0 / 863.6 |
45.0 / 1143 |
59.5 / 1511 |
| Internal Working Diameter -in. / -mm. |
29.5 / 750 |
40.5 / 1029 |
55.0 / 1397 |
| Neck Opening -in. / -mm. |
13.0 / 330 |
18.0 / 457 |
24.5 / 622 |
| Capacity |
| LN2 Capacity -L |
407 |
606 |
1350 |
| Power Supply(0) -VAC |
16.5 |
16.5 |
16.5 |
| Evaporation Rate(1) -L/day |
8.0 |
9.0 |
15.0 |
| Weight, Empty -lb. / -kg. |
650 / 295 |
920 / 417 |
1550 / 703 |
| Maximum Gross Weight(2) -lb. / -kg. |
1375 / 624 |
2000 / 907 |
3956 / 1794 |
| Inventory Control System Specification |
| No. 5.0×5.0 Racks(3) No. Shelves / Rack |
14 / 13 |
30 / 13 |
58 / 13 |
| No. 3.0×3.0 Racks(4) No. Shelves / Rack |
4 / 13 |
8 / 1 |
12 /13 |
| Vial Capacity, 2ml(5) |
19500 |
41600 |
79300 |
| Blood Bag (Fenwall 4R9951) |
560 |
1204 |
2100 |
| Blood Bag (Fenwall 4R9953) |
400 |
820 |
1505 |
| Blood Bag (Fenwall 4R9955) |
290 |
590 |
1050 |
