고속원심분리기(22,000RPM)
 작성자 : 네오바이오…
Date : 2014-01-19 10:41  |  Hit : 5,974
   HITACHI_Centrifuges__NEW__.pdf (26.3M) [42] DATE : 2014-01-19 10:41:24

*견적이나 기타 궁금하신 사항은 게시판을 이용해 주십시요.^^

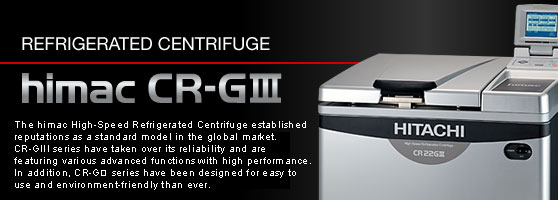

제품명 : CR22-GIII(22,000RPM)

제조사 : HITACHI / JAPAN


FEATURES

*더 안전하고 편리한 자동 고정식 Rotor

*자동적인 Rotor 인식 기능

*선 냉각 기능

*비 접촉식 불균형 보호 기능

*RTC(Real time control)기능

*Rotor database의 수정 기능

*RCF 계산 및 표시 기능

*PWM(Pulse Width Modulation) motor 조절 기능으로 가속/감속 시간이 이전의 방법보다 1/3 수준

*움직일 수 있는 액정 표시부

*CAPCITY - 1.5ml x 30ea  ~ 1,000ml x 4ea













Specifications

Model CR22GⅢ CR21GⅢ
Maximum speed (rpm) 22,000 21,000
Maximum RCF (x g) 55,200 50,300
Maximum capacity (ml x pcs) 1,000 x 4
Drive motor High-torque brushless high-frequency motor
Temp. Control Range -20 to +40 degree C
Accel/Decel Mode Accel : 9 modes / Decel : 9 modes, free deceleration
Refrigerator 1.5kW (Coolant :R404a)
Power requirements Single phase, AC 220/230/240V±10%, 30A, 50/60Hz
Dimensions (wxDxHmm) 752 x 810 (w/o rear duct) x 1,144 (panel opened)
(hight to to table: 858)
Weight (kg) 300

Self-Locking Rotor System
    • Hitachi Koki is a pioneer to introduce "Self-Locking Rotor System" in Centrifuges.
    • Just placing a rotor onto the drive shaft
    • No need to fix the rotor by screw or push the button to lock or unlock the rotor. Self-Locking Rotor System
    • Automatic rotor identification (PAT.)
    • Optimized running condition is automatically adjusted.
      (such as compensating for air friction and implement temperature control)

Swinging Bucket Rotor (R8S)
R8S
  • Max. Speed : 8,000 rpm Max. RCF : 11,500 x g
  • No wind-sealed shell design offers easy operation to users.
  • Nominal Capacity : 50ml TC tube (conical-type) x 4 tubes
  • Buckets are autoclavable. (121, for 20minutes)
  • Optional bucket sealing cap is available for your biosafety.
  • Optional bucket sealing cap is also autoclavable. (121, for 20minutes)
  • Biosafety Rotor.(With optional Cap)
High-capacity Light Weight Rotor (R9A)

  • R9A
    • Innovative aluminum alloy made light weight rotor
    • This series' rotors are half the weight of conventional rotors in the same capacity.
    • Greatly reduce acceleration/deceleration time.
    • Enables to rotating at Max. speed with bottles filled with any volume, as long as balanced.

    • R13A
    • 250ml x 6 (11.0kg) autoclavable
    • R12A6
    • 500ml x 4 (14.8kg) autoclavable
    • R10A5
    • 500ml x 6 (15.5kg) (for Nalgene® bottles)
    • R9A
    • 1,000ml x 4 (13.7kg) autoclavable
  • Wide-Opening Type Bottle
    • Wide-Opening Type Bottle
    • Easy to collect a sediment and clean the bottle
Continuous Flow Rotors
  • Continuous Flow Rotors
    • Continuous Rotor
    • The sample is introduced into the rotor through the inlet pipe. The supernatant liquid after separation is taken up by the impeller (like a vane wheel of a centrifugal pump) and discharged from the rotor.
  • Batch rotor
    • Batch rotor
    • Batch rotors centrifugally separate samples introduced directly into the rotor. There is no need to establish balance. Four blades protect a sediment from disturbance.
