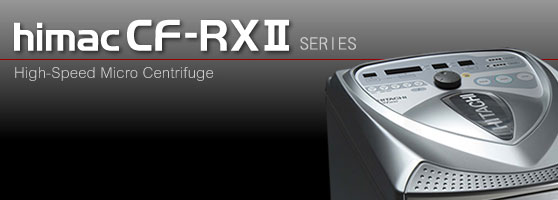

고속원심분리기(15,000RPM)
 작성자 : 네오바이오…
Date : 2014-01-20 18:49  |  Hit : 4,724
   HITACHI_Centrifuges__NEW__.pdf (26.3M) [39] DATE : 2014-01-20 18:49:45

*견적이나 기타 궁금하신 사항은 게시판을 이용해 주십시요.^^

제품명 : CF15RX II (15,000RPM)

제조사 : HITACHI / JAPAN


FEATURES

*ROTOR 의 장착이 빠르고 쉽게 되어 있는 SYSTEM

*저소음

*선 냉각 기능

*강력한 냉각 기능

*3단계의 가속/감속 기능

*멜로디 경보 기능

*4개의 조작 조건 저장 기능

*CAPCITY - 0.2ML x 48EA , 80ML x 4EA

Powerful acceleration! (CF15RXⅡ)
  • Accelerates in less than 8 sec. from 0 to 15,000 rpm.
  • Can use tubes 0.2 ml to 80 ml with 14 types of rotors.











Specifications

Moled CF15RXⅡ CF16RXⅡ
Type of centrifuge High-speed micro Versatile compact
Maximum speed (rpm) 15,000 16,000
Maximum RCF (x g) 21,900(T14A31 rotor) 21,900(T14A31 rotor)
Drive motor* Inverter motor (brushless)
Rotation control range 300 to 15,000
Timer 5-55 sec/1-99 min., with HOLD function
Temperature setting range -9°C to +40°C
Dimensions (mm) 834 (H) x 370 (W) x 517 (D) 852 (H) x 490 (W) x 580 (D)
Power requirements AC 115V±10%, 15A, 60Hz
AC 200/208V±10%, 8A, 50/60Hz
AC 200/230/240V±10%, 8A, 50Hz
Weight (kg) AC115V spec. 86 110
AC200-240V spec. 92 115
Part No. AC115V spec. No. 90560202 No. 90560402
AC200-240V spec. No. 90560201 No. 90560401

Rotors for CF-RXⅡ Series

Rotors
Rotors
Rotors
Rotors
Rotors
